Telecom Indoor Floor Standing Network Rack Cabinet

Payment Type: T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 5 Days

Basic Info

Model No.: SJ-NC-6

Type: Optical Fiber Distribution Box

Wiring Devices: ODF

Certification: RoHS, ISO

Condition: New

Model No.: SJ-NC-6

Color:: Customized

Installation:: Free Standing

Material:: SPCC Quality Cold Rolling Steel

Cabinet standard :: 19'' inch inner installation

Loading Capability:: 800KGS

Surface Treatment:: Degreasing,Pickling,Phosphating,Powder Coated

Product Specification:: 18U-47U

Width:: 600mm,800mm

Depth:: 600mm,800mm,900mm,1000mm,1200mm

Additional Info

Packaging: Standard Export Carton

Productivity: 20000sets/week

Brand: OEM or Sijee

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 5000000sets/year

Certificate: ISO, Rohs

HS Code: 853670000

Port: Ningbo,Shanghai

Product Description

SJ-NC-6 Telecom Indoor Floor Standing Network Rack Cabinet

Cabinet Application:
The standing network cabinet is a cost effective cabinet that can be installed in equipment rooms or in office environments where aesthetics are important.
The frame made from comes with steel side, top and rear door plus a toughened glass front door, tow pairs of shelf rails are provided for mounting shelves and other accessories in the 600mm/800mm and 960mm deep cabinets.
19-inch telecommunication and data racks designed for installing patch panels, active components for LAN construction, modems, industry-controlling devices, stage lighting control, and monitor equipments.
Unassembled rack is equipped with 2 pairs of 19-inch movable vertical extrusions, one pair of side panels with quick release locking fastener, tempered glass front, door with lock, rear metal door with lock.
Increase operation reliability for inside equipments, strong structure with maximum static load more 500kg.
Several lockable cable entrances on the top bottom plate.
Cabinet Information :
SPCC high-quality Cold Roll Steel. And its thickness: Mounting rails 2.0 mm, others 1.2 mm.
Surface treatment: degreasing, rustproof, phosphoric spraying.
Steel frame. Range of medium duty cabinets of durable modular construction.
Tempered glass front door and rear door accelerate the convection inside enclosure. With tempered glass locking doors section doors, enable ventilation and reliable operation.
Removable side panels, leveling feet or castors, Max. Static load 800 KG, Max. Dynamicload 350 KG.
Special design, strength front/rear door shape beauty and structure fastness. Several lockable wiring holes on top/bottom, size of the large hole the bottom adjustable. The frame can be moved according to requirement, U-marked in the frame to identify the height. Bottom base can fix the cabinet, cable entry, airflow, and avoid arts.
Full set of optional accessories.
Installation can be optional for castors of standing.
Efficient cabinets connectors.
Cabinets are vented to allow cooling.
Standard color is computer gray.
No tools are required to change the door from left hand to right hand opening.
Standard Compliances:
Standard meet ANSI/EIA RS-310-D.
DIN41491,PART1.
IEC297,PRAT7.
GB/T3047.2-42 requirement.
Compatible with 19" international standard.

Specification:

Product name :Network cabinet

(1) Brand name : Sijee or OEM

(2)Product specification:

Height:18U-47U

Width: 600mm, 800mm

Depth:600mm,800mm,900mm,1000mm,1200mm

(3) Certification :ISO9001,TLC, OHSAS 18001, ISO 14001

(4)Cabinet standard :19'' inch inner installation

(5)Material :High quality SPCC cold rolled steel T:1.2-2.0mmEnclosure: 5-fold profiled sheet steel 1.5mmDoor Plate: sheet steel 2.0mmRear Plate: sheet steel 1.5mmMounting plate: Zinc-plate 2.0mm-3.0mm

(6)Place of origin :Ningbo or Shanghai China (mainland)

(7)Color :Black, White or Grey (Special Color on Request)

(8)MOQ:1piece

(9)Loading Capacity:800KGS

(10)Installation :19'' inch inner installation

(11)Surface Treatment :Box & Door: Phosphating, Electrostatic powder spraying in orange-peel or plain finish

(12)Delivery details:15 working days.

(13)Packing:(a) Film around the spare parts.(b) EPE corner protectors in the four corners of carton.

(c) High quality cartons with strip.

(14)Accessories

Cooling fan:800mm deep or below with two fans; 800mm deep include 800mm with four fans.

PDU:A set of six universal power socket

Castor and support:Four M12 adjustable foot, four 2" heavy-duty casters

(15)Comments1. Overall dimension could be custom made by requirement. 2. Configuration of Box can be customized according to customer requirement.

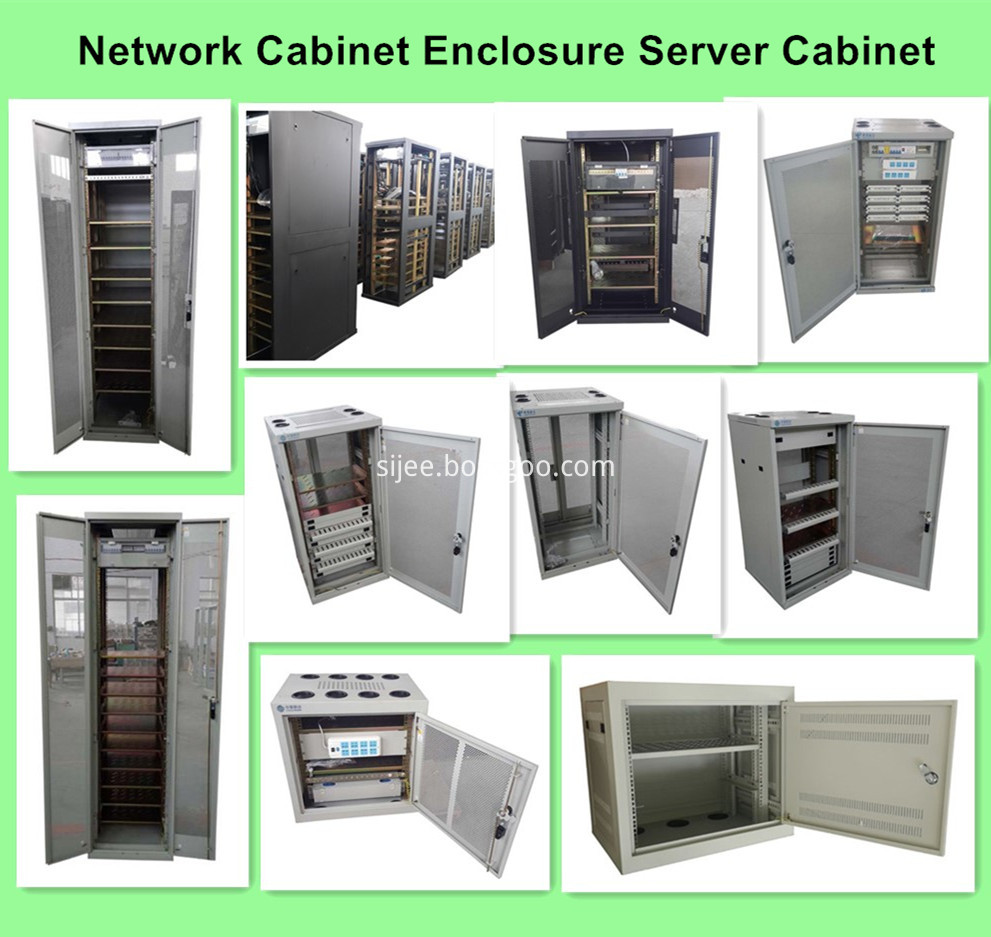

View of product:

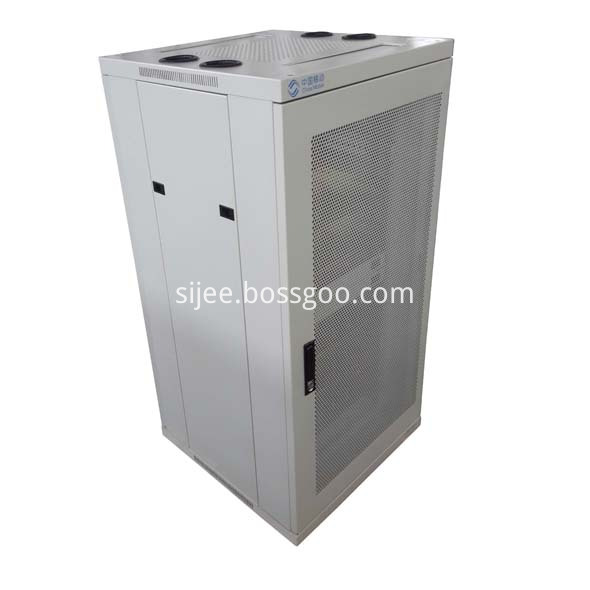

Standing Network Cabinet

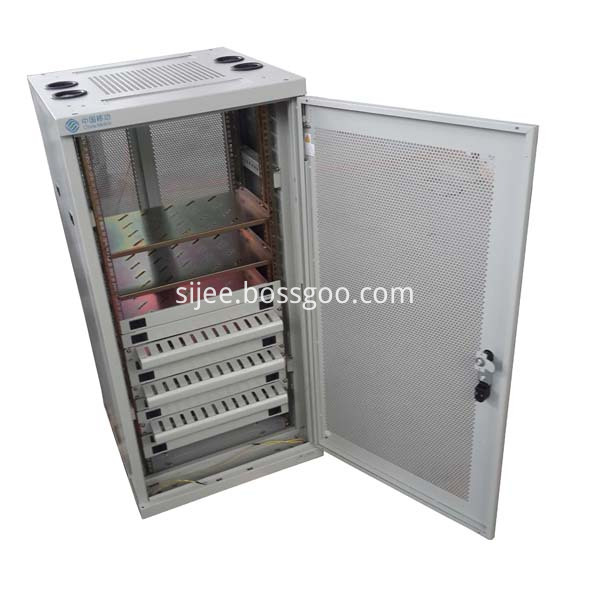

Floor Standing Rack Cabinet

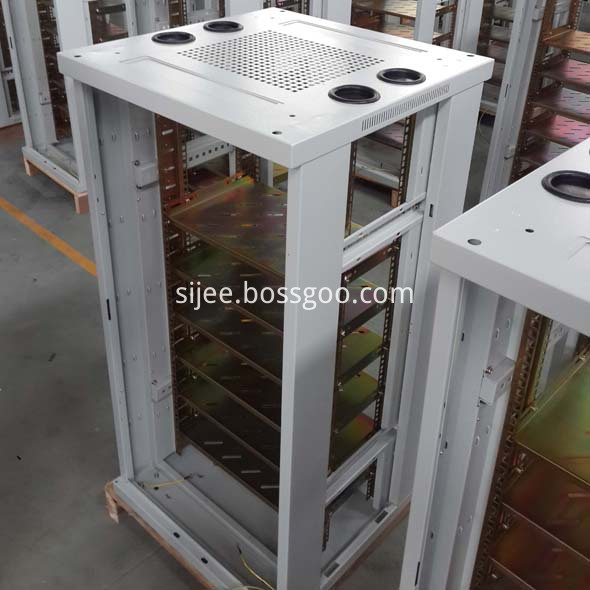

Rack Floor Standing Network Cabinet

More Product:

Network cabinet

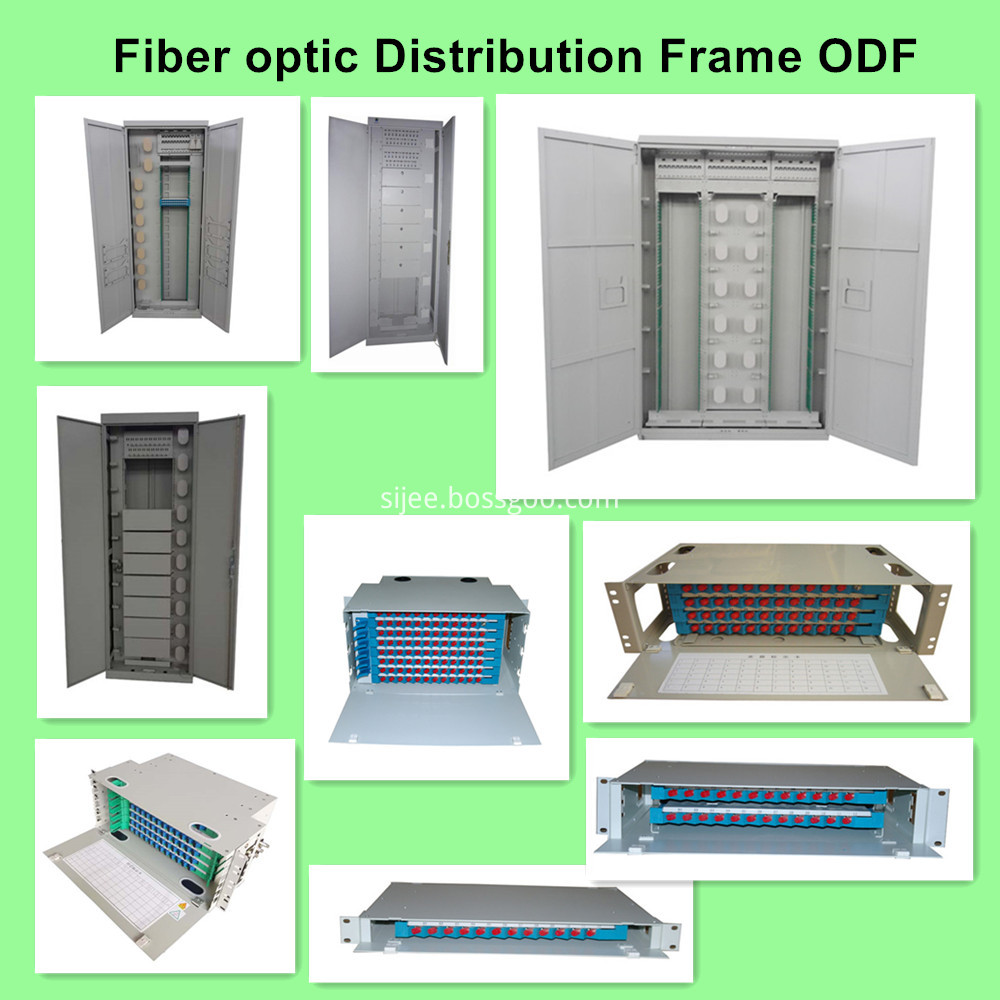

rack mount optical distribution box

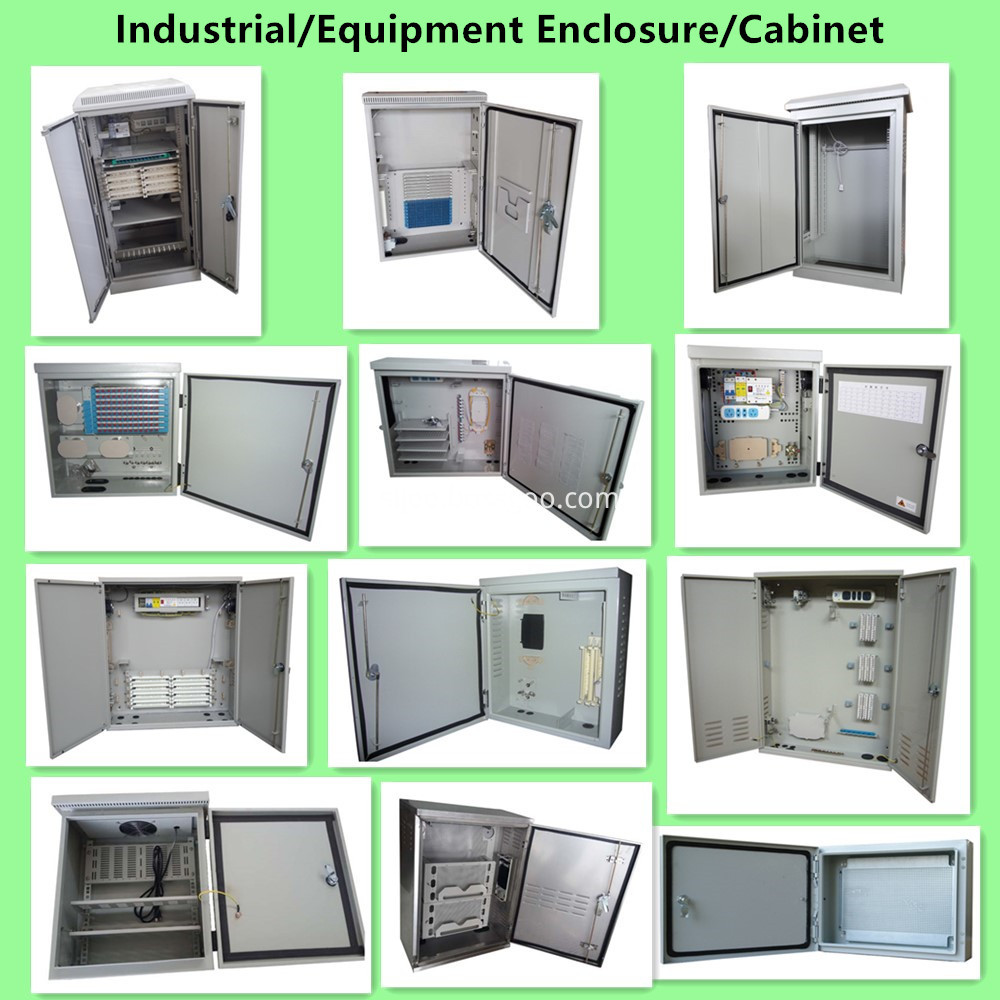

Industrial Enclosure

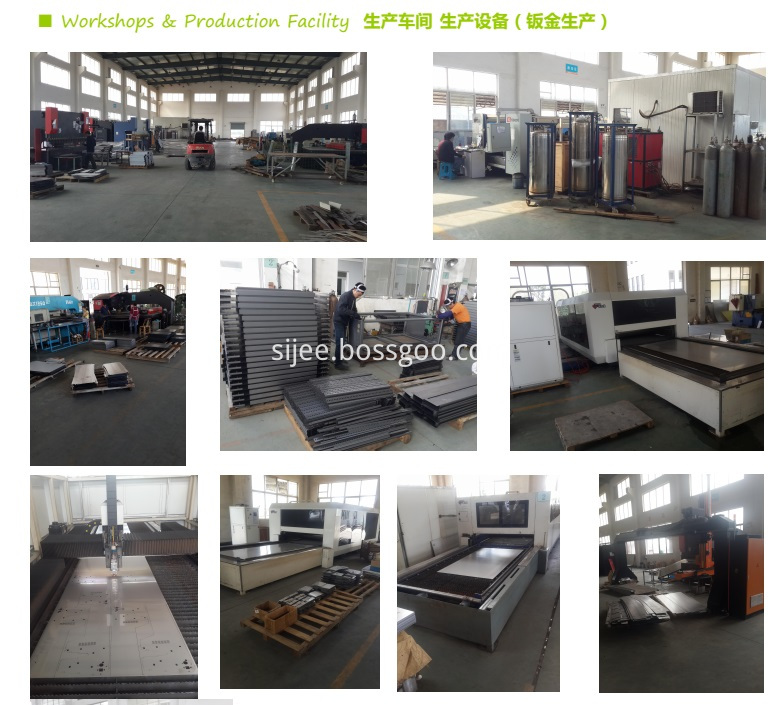

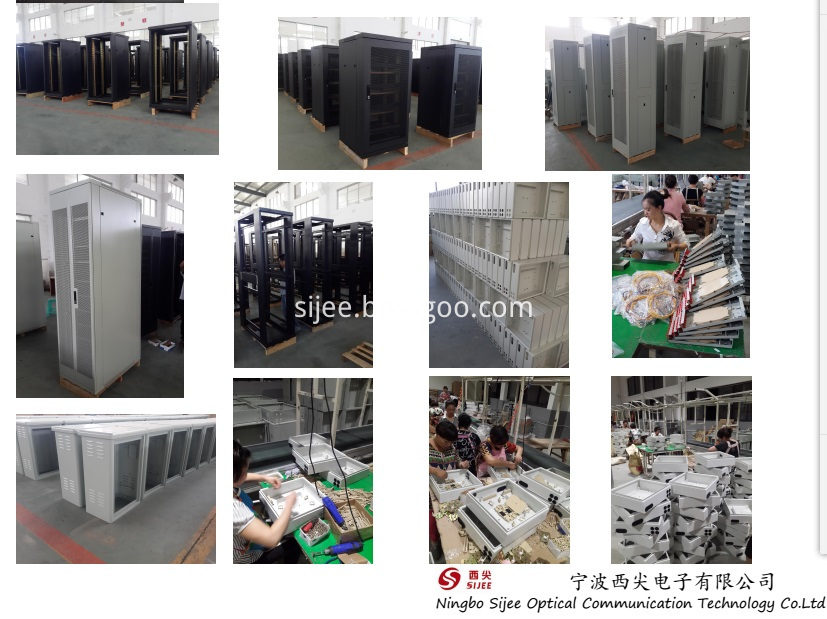

Sheet Metal Workshop:

metal wall mounted enclosure

wall mounted enclosure

Certification:

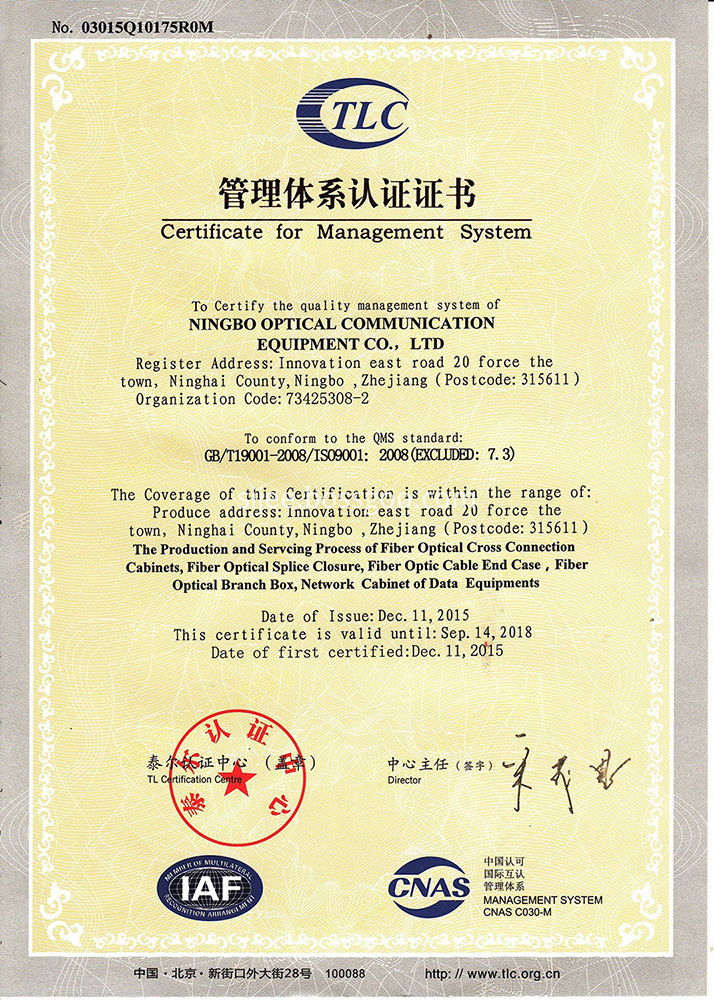

ISO 9001

Environmental ISO14001

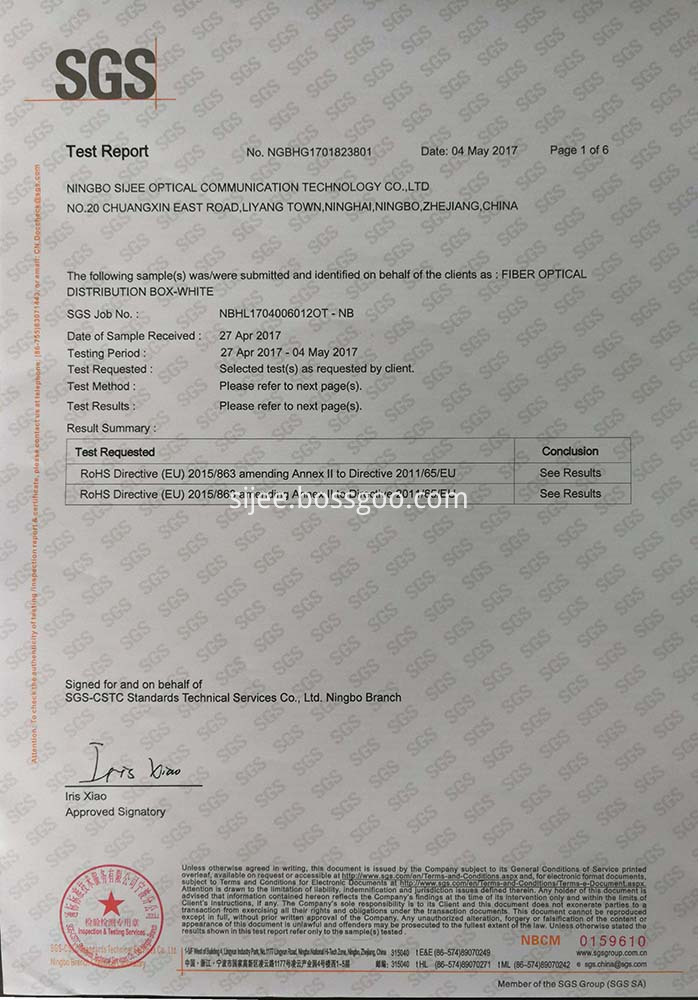

Fiber optic distribuiton box ROHS

You are manufacturer or trading company?

We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.

What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?

Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.

You factory is a huge one?

We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.

What is your brand service?

High quality stainless steel fabrication & precision pressing & powder coating are our brand work.

How to start cooperation with you?

Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order

Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
