|Payment Type:||T/T,Western Union|
|Min. Order:||1 Set/Sets|
|Delivery Time:||5 Days|
Model No.: SJ-OCC-SS-576-1
Type: Optical Fiber Distribution Box
Wiring Devices: ODF
Certification: RoHS, ISO
Model No.: SJ-OCC-SS-576-1
Applicable Adapter:: SC, FC, Duplex LC
Splice Tray Capacity:: 12 Fibers/tray
Material:: 201/304 Stainless Steel
Capacity:: 576 Cores
Packaging: Standard Export Carton
Brand: OEM or Sijee
Place of Origin: China
Supply Ability: 5000000sets/year
Certificate: ISO, Rohs
HS Code: 853670000
SJ-OCC-SS-576-1 Outside Plant Fiber Cable Cross Connect Cabinets
Fibre Optic Cross Connect Cabinet has been designed specifically for use within Fibre To The Home (FTTH) Passive Optical Networks (PON). The hubs are designed for use in outside plant applications for the housing of passive optical splitters in a variety of sizes with output Fibre capacities up to 576 Fibre. Traditional optical cables are normally used as input cable but a variety of configurations will be available to allow output cables to be used for the distribution / drop parts of an FTTH network.
Stainless steel plate body ensures nice performance of anti-erosion, aging resistance and pleasing appearance.
Cabinet has functions of cable termination, as well as fiber distribution, splice, storage and dispatch.
Solid and fully-closed structure.
With advantages of nice performance of dust-proof.
Pleasing and neat appearance.
Structure of cabinet: double-layered with round angles and single-door cabinet
Nice water- and dust-resistant performance.
Lock provided on every cabinet ensures safety of fibers
Multifunction: various types of distribution units (DU) are available for making various combinations.
Disc-shaped direct splice tray (12 to 24 cores/tray) is adapted can be used for direct splicing
Accommodates SC, FC and LC and ST adapters
Earth protection provided for every incoming optical cable
Temperature: -40 to + 60°C
Relative humidity: ≤95% (at 40°C)
Atmospheric pressure: 70 to 106kPa
Working with wavelength: 850, 1310 and 1550nm
Pressurization between frame high voltage protection earth device and frame ≥3000V (DC)/1 minute without any breakdown or flash over
Insulation resistance between frame high voltage protection earth device and frame ≥20,000MΩ 500V DC
Each surface of cabinet can bear vertical pressure over 980N
Outermost part of door can bear vertical pressure over 200N when door is open
Fixing position of cable can bear axial tensile force 1000N, as well as three times of recyclable torsion of ±90°
Mechanical durability: no damage for all connectors and adapters after 500 mating times
Curvature radius: >40mm
Material:201/304 Stainless Steel
Comments: 1. Overall dimension could be custom made by requirement.
2. Configuration of Box can be customized according to customer requirement.

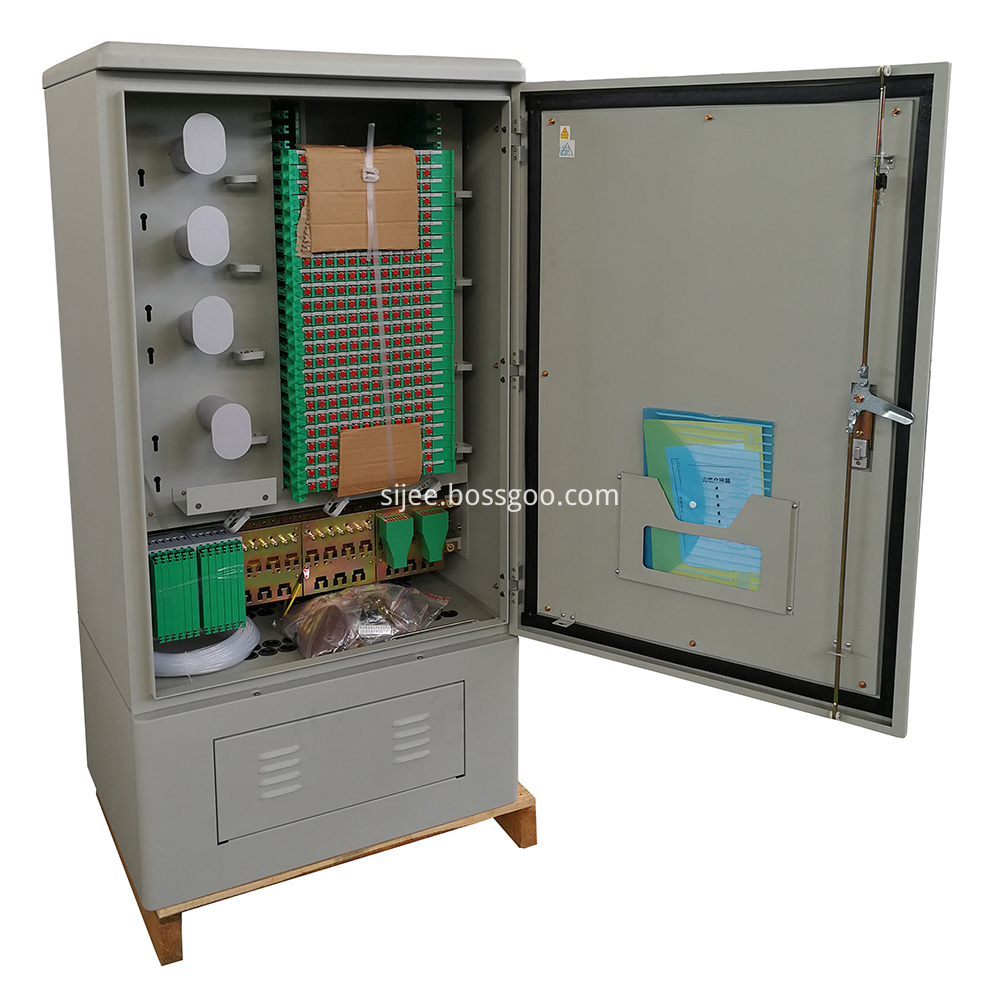

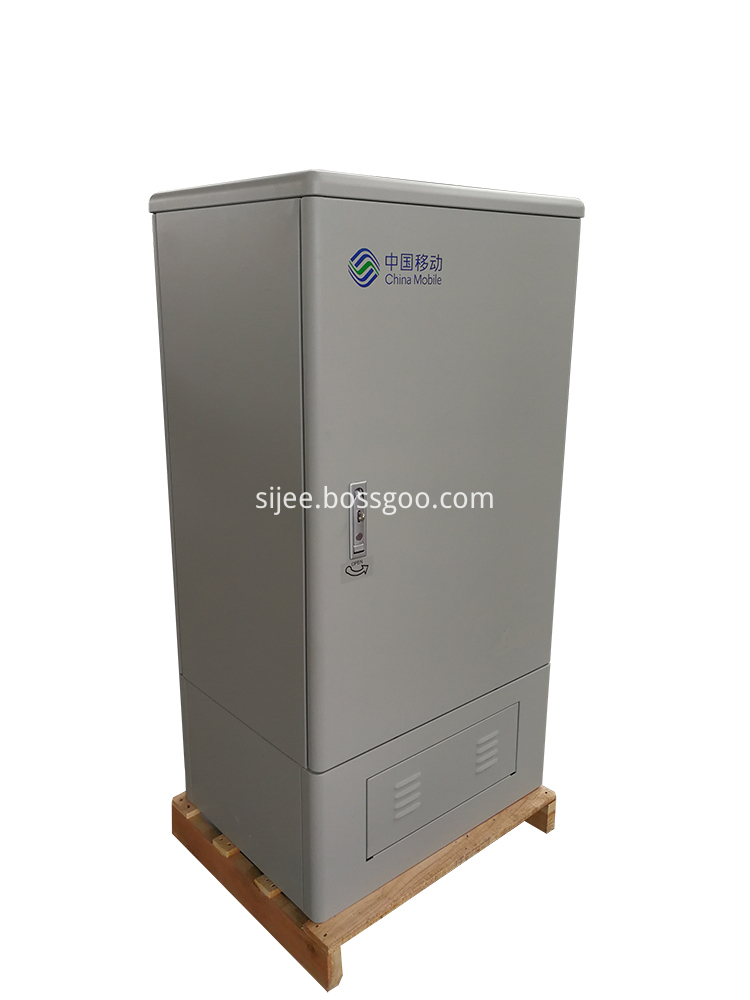

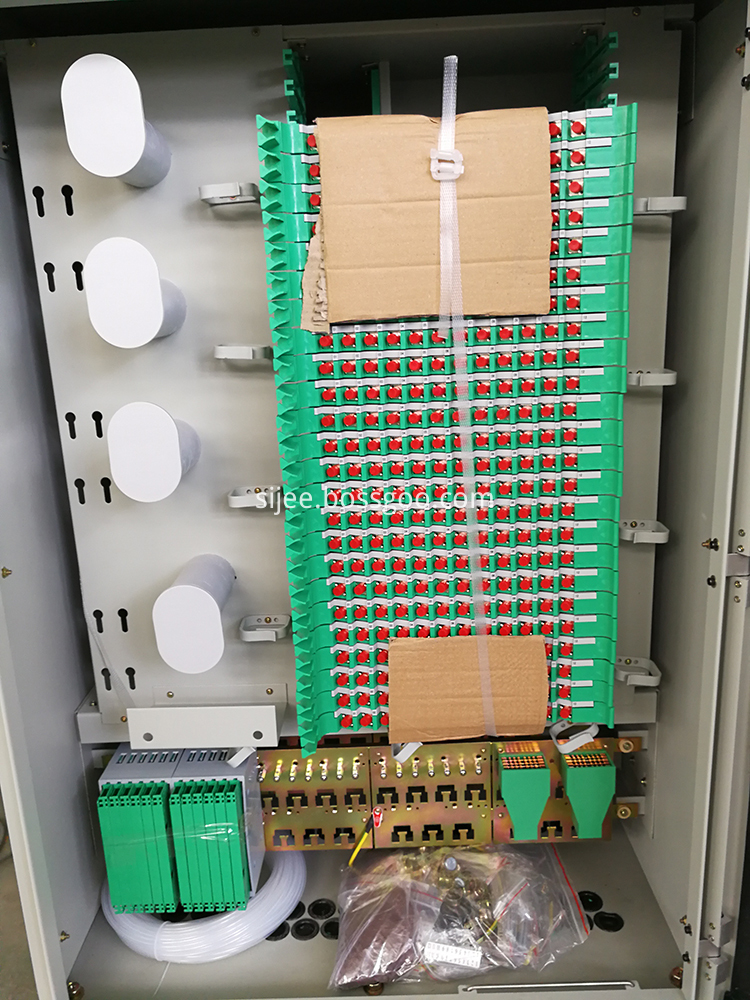

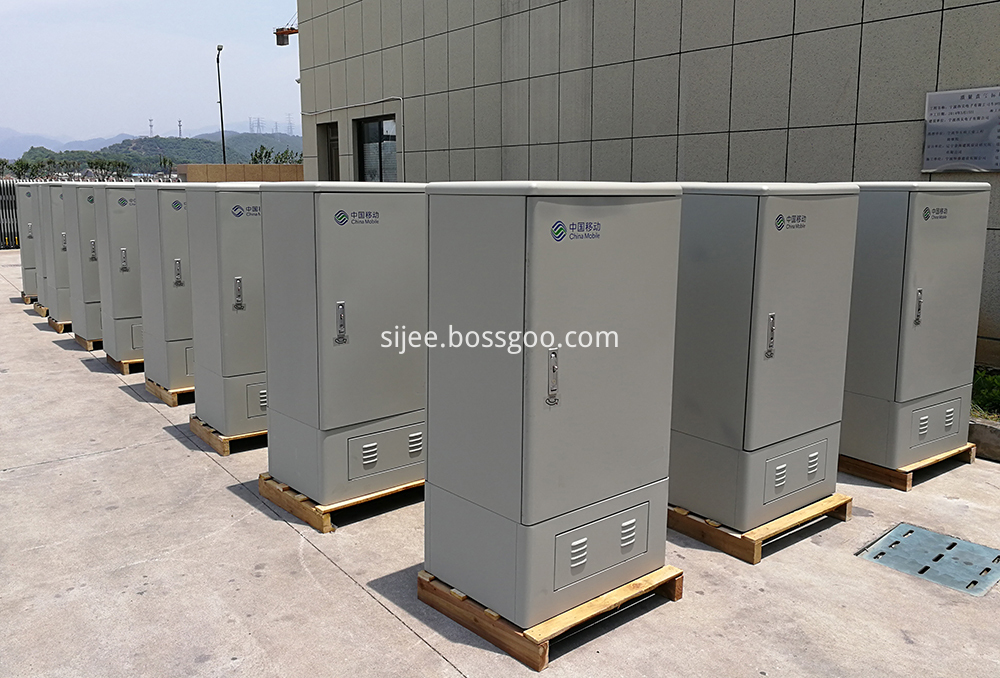

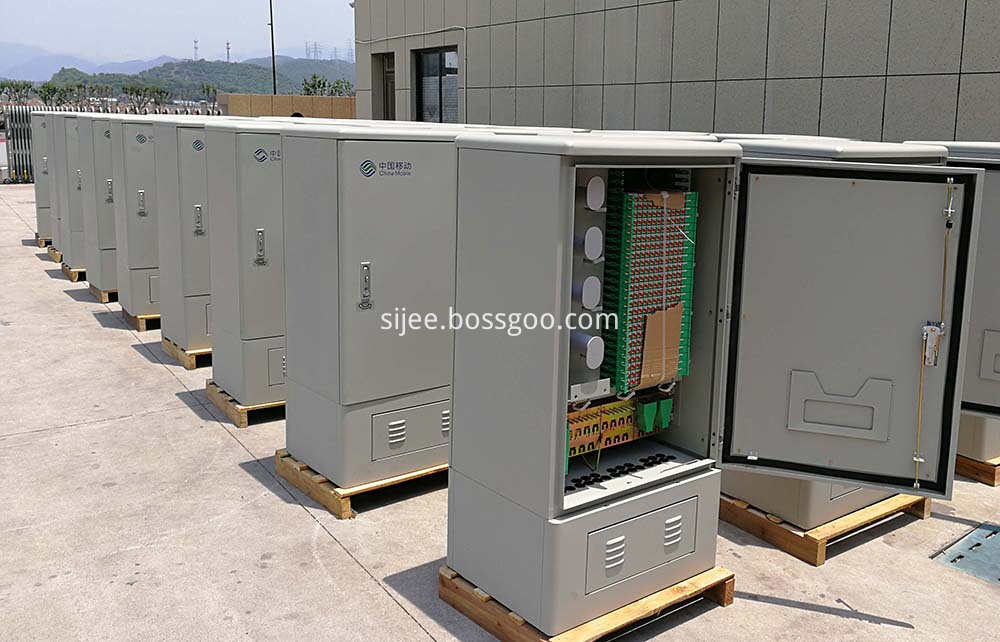

View of product:
Sheet Metal Workshop:
You are manufacturer or trading company?
We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.
What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?
Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.
You factory is a huge one?
We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.
What is your brand service?
High quality stainless steel fabrication & precision pressing & powder coating are our brand work.
How to start cooperation with you?
Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
