576 F Outside Plant Fiber Cable Cross Connect Cabinets

Payment Type: T/T,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 5 Days

Basic Info

Model No.: SJ-OCC-SS-576

Type: Optical Fiber Distribution Box

Wiring Devices: ODF

Certification: RoHS, ISO

Condition: New

Model No.: SJ-OCC-SS-576

Applicable Adapter:: SC, FC, Duplex LC

Splice Tray Capacity:: 12 Fibers/tray

Material:: 201/304 Stainless Steel

Capacity:: 576 Cores

Dimension(HxWxD)mm:: 1500X740X600/580

Additional Info

Packaging: Standard Export Carton

Productivity: 20000sets/week

Brand: OEM or Sijee

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 5000000sets/year

Certificate: ISO, Rohs

HS Code: 853670000

Port: Ningbo,Shanghai

Product Description

SJ-OCC-SS-576 Outside Plant Fiber Cable Cross Connect Cabinets


Description:

Stainless steel plate body ensures nice performance of anti-erosion, aging resistance and pleasing appearance.

Cabinet has functions of cable termination, as well as fiber distribution, splice, storage and dispatch.

Solid and fully-closed structure.

With advantages of nice performance of dust-proof.

Pleasing and neat appearance.

Structure of cabinet: double-layered with round angles and single-door cabinet

Nice water- and dust-resistant performance.

Lock provided on every cabinet ensures safety of fibers

Multifunction: various types of distribution units (DU) are available for making various combinations.

Disc-shaped direct splice tray (12 to 24 cores/tray) is adapted can be used for direct splicing

Accommodates SC, FC and LC and ST adapters

Earth protection provided for every incoming optical cable

Environment conditions:

Temperature: -40 to + 60°C

Relative humidity: ≤95% (at 40°C)

Atmospheric pressure: 70 to 106kPa

Technical specifications:

Working with wavelength: 850, 1310 and 1550nm

Pressurization between frame high voltage protection earth device and frame ≥3000V (DC)/1 minute without any breakdown or flash over

Insulation resistance between frame high voltage protection earth device and frame ≥20,000MΩ 500V DC

Each surface of cabinet can bear vertical pressure over 980N

Outermost part of door can bear vertical pressure over 200N when door is open

Fixing position of cable can bear axial tensile force 1000N, as well as three times of recyclable torsion of ±90°

Mechanical durability: no damage for all connectors and adapters after 500 mating times

Curvature radius: >40mm



Specification:

Model NO.:SJ-OCC-SS-576

Dimension(HxWxD)mm:1500X740X600/580

Capacity:576 Fibers

Material:201/304 Stainless Steel

Comments: 1. Overall dimension could be custom made by requirement.

2. Configuration of Box can be customized according to customer requirement.

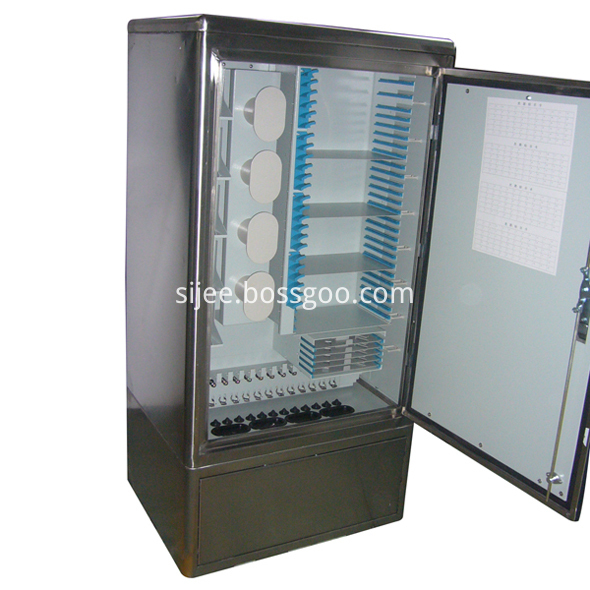

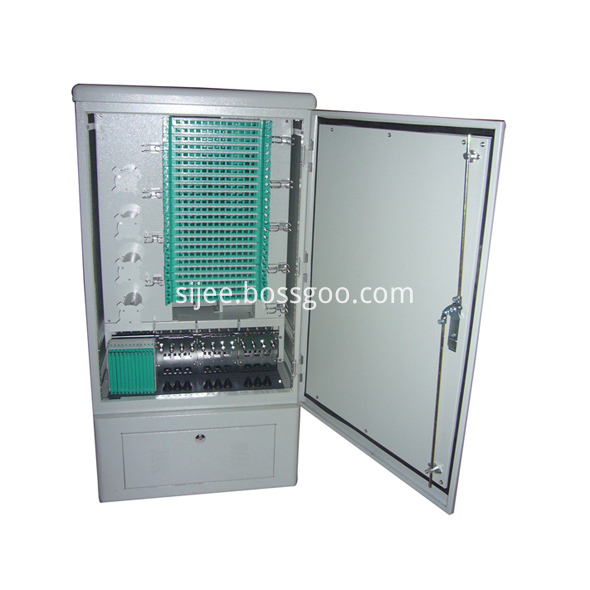

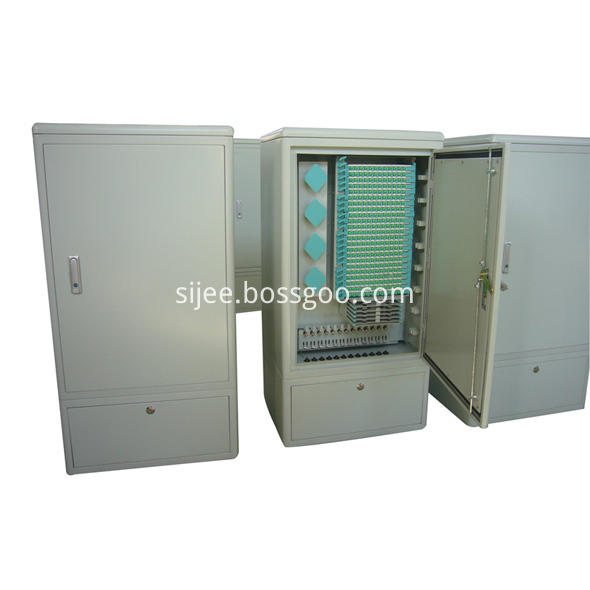

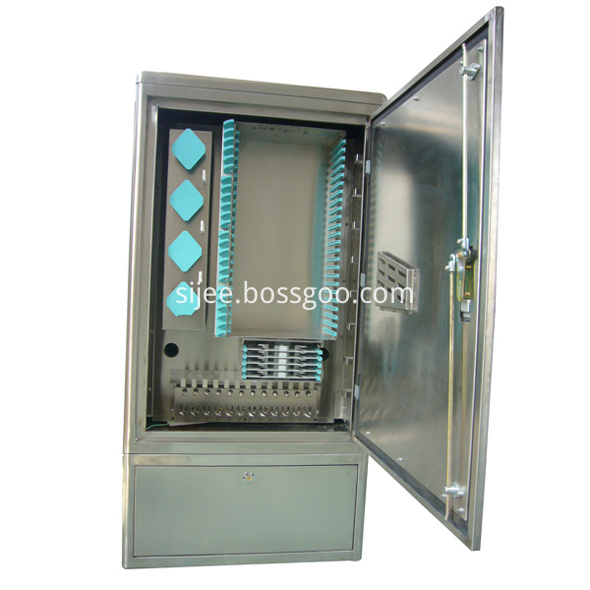

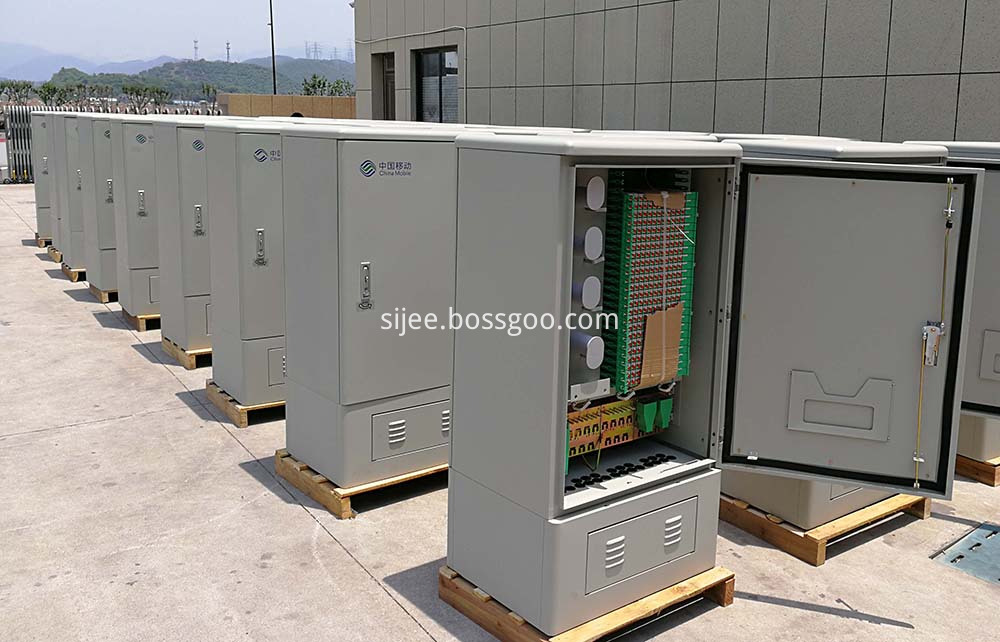

View of product:

fiber optic distribution cabinets

fiber optic distribution cabinet

Fiber Optic Linking Cabinet

Optical cross connects

Optical Fiber Cross Connection Cabinet

More Product:

Fiber Optic Cross Connect Cabinets

rack mount optical distribution box


Sheet Metal Workshop:

metal wall mounted enclosure

wall mounted enclosure

Certification:

ISO 9001

Environmental ISO14001


Fiber optic distribuiton box ROHS

You are manufacturer or trading company?

We are 15-year-experience manufacturer of sheet metal fabrication,handle almost anything from metal. You can get quotation of direct factory which give you advantage in target market.

What is the lead time for prototype? Do you help repairing the parts of the nonconforming sample?

Normally 5 days for prototyping, and we help with sample repairing.If sample is non-conformity,we can also make second sample for free to improve the quality, client just need to pay the freight.

You factory is a huge one?

We have an area of 30000 square meters for production & assembly,and now have over 225 employees.Assembling & packaging place covers over 5000 square meter,clients can save the cost of assembly in target market.

What is your brand service?

High quality stainless steel fabrication & precision pressing & powder coating are our brand work.

How to start cooperation with you?

Type A:Clients send us technical drawing>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order

Type B:Clients send us ideas or sample>technical drawing design>quotation on drawings>confirmation on between>prototype>sample confirmation>package confirmation>batch order
